Packing Machinery

Fully Automatic Filling Machine (Bottle) (Powder/Small Granule)

APG-01B Single Head Powder Filling Machine

Specification Volume Weighing
Packing weight 10g-1 kg 10g-5kg
Packing speed 20-40 bottles/min 5-25 bottle/min
Accuracy < 1 % < 0.3%
Power 2kw 2kw
Voltage AC380V \ 220V \ 110V
Air pressure 5-8Kg/cm²
Air intake 0.05m³/min
Machine weight 220kg
Dimensions(L•W•H) 2200 x 850 x 1850mm
Specification Volume Weighing
Packing weight 10g-1 kg 10g-5kg
Packing speed 30-50 bottles/min 10-35 bottle/min
Accuracy < 1 % < 0.3%
Power 3.5kw 3.5kw
Voltage AC380V \ 220V \ 110V
Air pressure 5-8Kg/cm²
Air intake 0.05m³/min
Machine weight 350kg
Dimensions(L•W•H) 2000 x 950 x 2100mm

APG-01B Single Head Powder Filling Machine

Fully Automatic Filling Machine (Bottle) (Granule)

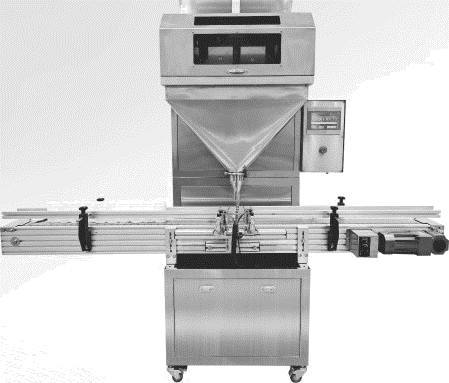

GMB-01B Granule Filling Machine (Single Head With Four Scales)

Scale Volume 3.5L / 5L
Packing Weight 50g – 3000g
Heading Diameter 22 / 32 / 45 / 60 / 76 / 89 mm
Packing Speed 400 – 1800 bottles/hour
Accuracy < 0.3%
Voltage AC220V / 110V
Power 1.5 Kw
Machine Weight 320 Kg
Dimensions (L×W×H) 2000 × 850 × 2200 mm
Scale Volume 3.5L / 5L
Packing Weight 50g – 3000g
Heading Diameter 22 / 32 / 45 / 60 / 76 / 89 mm
Packing Speed 600 – 2000 bottles/hour
Accuracy < 0.3%
Voltage AC220V
Power 4 Kw
Machine Weight 350 Kg
Dimensions (L×W×H) 2000 × 850 × 2200 mm

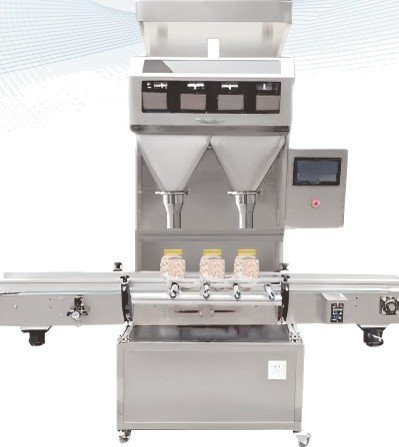

GMB-02B Granule Filling Machine (Double Head With Four Scales)

GMB-03B Granule Filling Machine(Four Head With Four Scales)

Scale Volume 3.5L / 5L
Packing Weight 50g – 3000g
Heading Diameter 22 / 32 / 45 / 60 / 76 / 89 mm
Packing Speed 400 – 1800 bottles/hour
Accuracy < 0.3%
Voltage AC220V / 110V
Power 1.5 Kw
Machine Weight 320 Kg
Dimensions (L×W×H) 2000 × 850 × 2200 mm
Scale Volume 3.5 L / 5 L
Packing Weight 50g – 3000g
Heading Diameter 22 / 32 / 45 / 60 / 76 / 89 mm
Packing Speed 400 – 1800 bottles/h
Accuracy < 0.3 %
Voltage AC220V / 110V
Power 1.5 Kw
Machine Weight 320 Kg
Dimensions (L×W×H) 2000 × 850 × 2200 mm

GMB-04B Small Granule Filling Machine (Four Head With Four Scales)

Fully Automatic Filling Machine (Bottle) (Granule)

GMB-01B Granule Filling Machine (Single Head With Four Scales)

Scale Volume 3.5L / 5L
Packing Weight 50g – 3000g
Heading Diameter 22 / 32 / 45 / 60 / 76 / 89 mm
Packing Speed 400 – 1800 bottles/hour
Accuracy < 0.3%
Voltage AC220V / 110V
Power 1.5 Kw
Machine Weight 320 Kg
Dimensions (L×W×H) 2000 × 850 × 2200 mm
Scale Volume 3.5L / 5L
Packing Weight 50g – 3000g
Heading Diameter 22 / 32 / 45 / 60 / 76 / 89 mm
Packing Speed 600 – 2000 bottles/hour
Accuracy < 0.3%
Voltage AC220V
Power 4 Kw
Machine Weight 350 Kg
Dimensions (L×W×H) 2000 × 850 × 2200 mm

GMB-02B Granule Filling Machine (Double Head With Four Scales)

GMB-03B Granule Filling Machine(Four Head With Four Scales)

Scale Volume 3.5L / 5L
Packing Weight 50g – 3000g
Heading Diameter 22 / 32 / 45 / 60 / 76 / 89 mm
Packing Speed 400 – 1800 bottles/hour
Accuracy < 0.3%
Voltage AC220V / 110V
Power 1.5 Kw
Machine Weight 320 Kg
Dimensions (L×W×H) 2000 × 850 × 2200 mm
Scale Volume 3.5 L / 5 L
Packing Weight 50g – 3000g
Heading Diameter 22 / 32 / 45 / 60 / 76 / 89 mm
Packing Speed 400 – 1800 bottles/h
Accuracy < 0.3 %
Voltage AC220V / 110V
Power 1.5 Kw
Machine Weight 320 Kg
Dimensions (L×W×H) 2000 × 850 × 2200 mm

GMB-04B Small Granule Filling Machine (Four Head With Four Scales)

Fully Automatic Filling Machine (Bottle) (Liquid)

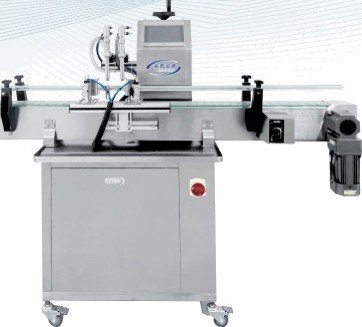

APG-04 Liquid Filling Machine

Filling Volume 20 – 2000 ml
Accuracy ≤ 1%
Filling Speed ≤ 6000 bottles / h
Voltage AC 220V / 110V
Power 1 Kw
Dimensions (L×W×H) 2000 × 700 × 1900 mm

APG-05 Liquid Filling Machine(Servo Motor)

Filling Volume 20 – 1000 ml
Accuracy ≤ 1%
Filling Speed ≤ 2000 bottles / h
Voltage AC 220V / 110V
Power 1 Kw
Dimensions (L×W×H) 2000 × 700 × 1450 mm

Fully Automatic Filling Machine (Bottle) (Liquid / Sauce)

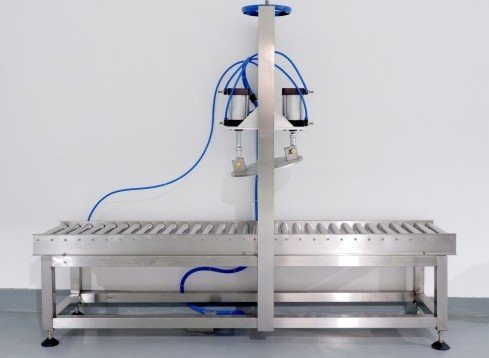

APG-03 Double Nozzle Liquid Weighing Filling Machine (With Conveyor Belt)

Filling Weight 100g – 25 kg
Accuracy < 0.2%
Filling Speed 240 - 1200 bottles / h
Voltage AC 220V / 110V
Power 3.4 Kw
Dimensions (L×W×H) 2000 × 910 × 1950 mm

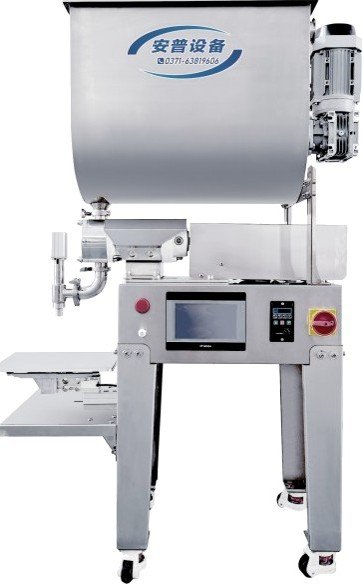

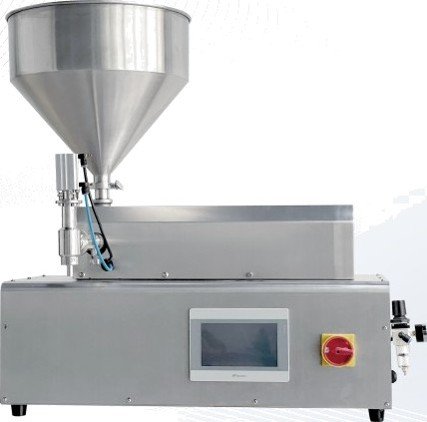

APG-G1 Paste Flling Machine

Filling Weight 5g – 10 kg
Accuracy ≤ 2%
Filling Speed 100 - 500 g/s
Voltage AC 220V / 110V
Power 1.5 Kw
Dimensions (L×W×H) 2000 × 700 × 1450 mm

Supporting Machine

Turntable Diameter ⌀ 1000 mm
Bottle Diameter ⌀ 30 - 105 mm
Bottle Height 80 - 300 mm
Speed 30 - 60 bottles/min
Voltage AC220V / 110V
Power 0.5 Kw
Machine Weight 60 kg
Dimensions (L×W×H) 900 × 1150 × 1180 mm

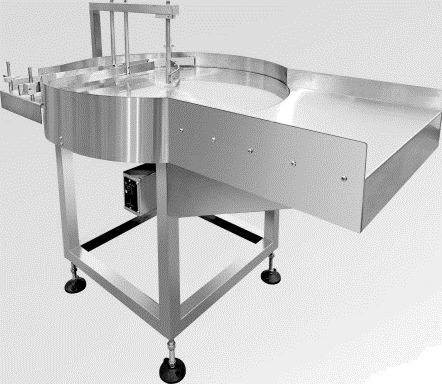

GMB-L Rotary Bottle Feeding Machine

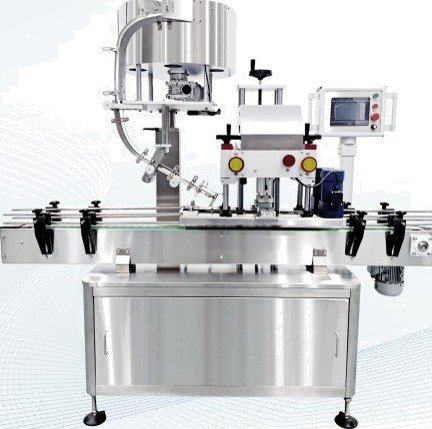

GMB-X Capping Machine

Belt Height 850 ± 50 mm
Bottle Diameter ⌀ 30 - 105 mm
Bottle Height 50 - 300 mm
Speed 40 - 80 bottles/min
Voltage AC220V / 110V
Power 0.4 Kw
Machine Weight 250 kg
Dimensions (L×W×H)
Standard: 800 × 700 × 1600 mm
Extended: 2000 × 710 × 1650 mm

APT-X Cap Feeding Machine

Voltage AC220V / 110V
Power 0.37 Kw
Machine Weight 200 kg
Dimensions (L×W×H) 1300 × 1100 × 2400 mm

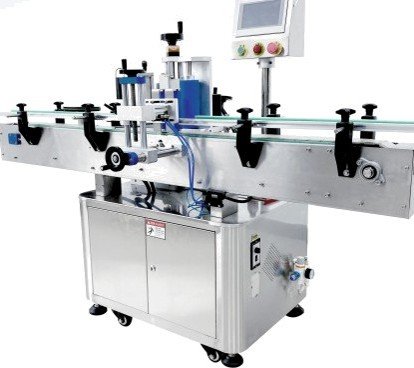

GMB-T Labeling Machine

Label Length 20 - 285 mm
Label Width 20 - 180 mm
Label Roll Diameter ⌀ 76 mm / ⌀ 300 mm
Bottle Diameter ⌀ 30 - 105 mm
Bottle Height 80 - 300 mm
Accuracy ± 1 mm
Labeling Speed 40 - 60 m/min
Transporting Speed 5 - 18 m/min
Voltage & Power AC220V / 110V, 1 Kw
Machine Weight 150 kg
Dimensions (L×W×H) 1900 × 1200 × 1530 mm
Sealing Diameter ⌀ 20 - 65 mm
Sealing Speed 1 - 20 m/min
10 - 200 m/min
Sensor Head Height 800 – 1260 mm
Voltage AC220V / 110V
Power 4 Kw
CMOS Max Current 37A
Machine Weight 60 kg
Sensor Size (L×W×H) 670 × 125 × 95 mm
Dimensions (L×W×H) 1900 × 1200 × 1530 mm

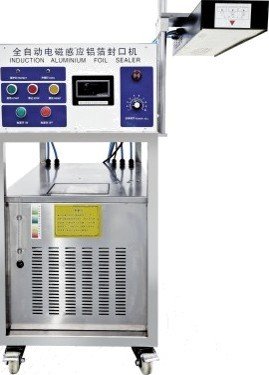

F-35 Electromagnetic Aluminum Foil Sealing Machine

GMB-S Rotary Bottle Collecting Machine

Turntable Diameter ⌀ 1000 mm
Voltage AC220V / 110V
Power 0.5 Kw
Machine Weight 60 kg
Dimensions (L×W×H) 1000 × 1000 × 1100 mm

Fully automatic packing line (Bag)

Fully Automatic Bag Packing Machine(Powder/Small Granule)

Specification GMB-230 GMB-260 GMB-300 GMB-400
Measurement Method Volume (Single head filling)
Bag Type Premade / Stand up / Zipper / Paper / M-bags etc.
Bag Material PE, PP etc.
Bag Width 80-230 mm 140-260 mm 180-300 mm 260-400 mm
Bag Length 150-350 mm 150-350 mm 150-450 mm 200-500 mm
Speed 20-55 bags/min 20-50 bags/min 10-35 bags/min 10-25 bags/min
Power 3.75 Kw 3.75 Kw 3.85 Kw 4.5 Kw
Machine Weight 1400 kg 1400 kg 1700 kg 2000 kg
Dimensions (L×W×H) 1700×1570×1650 mm 1700×1570×1650 mm 2460×1830×1460 mm 2260×2200×1520 mm

Fully Automatic Bag Packing Machine (Powder/Small Granule)

Specification GMB-230 GMB-260 GMB-300 GMB-400
Measurement Method Weighing (Double head filling)
Bag Type Premade / Stand up / Zipper / Paper / M-bags etc.
Bag Material PE, PP etc.
Bag Width 80-230 mm 140-260 mm 180-300 mm 260-400 mm
Bag Length 150-350 mm 150-350 mm 150-450 mm 200-500 mm
Speed 20-55 bags/min 20-50 bags/min 10-35 bags/min 10-25 bags/min
Power 3.75 Kw 3.75 Kw 3.85 Kw 4.5 Kw
Machine Weight 1400 kg 1400 kg 1700 kg 2000 kg
Dimensions (L×W×H) 1700×1570×1650 mm 1700×1570×1650 mm 2460×1830×1460 mm 2260×2200×1520 mm

Fully Automatic Bag Packing Machine (Granule)

Specification GMB-230 GMB-260 GMB-300 GMB-400
Measurement Method Volume (Single head filling)
Bag Type Premade / Stand up / Zipper / Paper / M-bags etc.
Bag Material PE, PP etc.
Bag Width 80-230 mm 140-260 mm 180-300 mm 260-400 mm
Bag Length 150-350 mm 150-350 mm 150-450 mm 200-500 mm
Speed 20-55 bags/min 20-50 bags/min 10-35 bags/min 10-25 bags/min
Power 3.75 Kw 3.75 Kw 3.85 Kw 4.5 Kw
Machine Weight 1400 kg 1400 kg 1700 kg 2000 kg
Dimensions (L×W×H) 1700×1570×1650 mm 1700×1570×1650 mm 2460×1830×1460 mm 2260×2200×1520 mm

Fully Automatic Bag Packing Machine (Liquid\Sauce\Paste)

Specification GMB-230 GMB-260 GMB-300 GMB-400
Measurement Method Volume (Single head filling)
Bag Type Premade / Stand up / Zipper / Paper / M-bags etc.
Bag Material PE, PP etc.
Bag Width 80-230 mm 140-260 mm 180-300 mm 260-400 mm
Bag Length 150-350 mm 150-350 mm 150-450 mm 200-500 mm
Speed 20-55 bags/min 20-50 bags/min 10-35 bags/min 10-25 bags/min
Power 3.75 Kw 3.75 Kw 3.85 Kw 4.5 Kw
Machine Weight 1400 kg 1400 kg 1700 kg 2000 kg
Dimensions (L×W×H) 1700×1570×1650 mm 1700×1570×1650 mm 2460×1830×1460 mm 2260×2200×1520 mm

Vertical-type Rolling Film Packing Machine

Specification DXD-320 DXD-420 DXD-520 DXD-620 DXD-720
Film Pulling Power Servo motor / Double belts
Bag Type Back seal / Gusset / Hanging hole / Stand up / Premade bags etc.
Bag Material PE / PP / PET / AL / Paper / Plastic / Nylon etc.
Film Width ≤ 320 mm ≤ 420 mm ≤ 520 mm ≤ 620 mm ≤ 720 mm
Bag Width 50-150 mm 60-200 mm 60-250 mm 100-300 mm 100-350 mm
Bag Length 50-200 mm 80-300 mm 80-350 mm 100-420 mm 100-510 mm
Film Thickness 0.05-0.09 mm 0.06-0.12 mm 0.06-0.12 mm 0.06-0.12 mm 0.06-0.12 mm
Speed 8-70 bags/min 20-50 bags/min 20-45 bags/min 10-45 bags/min 10-35 bags/min
Power 2.2 Kw 2.2 Kw 2.5 Kw 2.6 Kw 4.0 Kw
Machine Weight 290 kg 450 kg 550 kg 650 kg 750 kg
Dimensions (L×W×H) 1067×1026×1288 mm 1630×1000×1400 mm 1630×1100×1550 mm 1660×1200×1650 mm 1700×1400×1800 mm

Semi-automatic packing line(Power/Small granule)

Packing Weight 5g - 5 kg
Measurement Volume
Speed 1200 – 3500 bags/h
Accuracy ≤ 1%
Voltage AC380V / 220V / 110V
Power 1.5 Kw
Machine Weight 180 kg
Dimensions (L×W×H) 740 × 810 × 1900 mm

GMB-01A Quantitative Powder Packing Machine

GMB-01F & GMB-02E Quantitative Powder Packing Machine

Specification Volume Measurement Weighing Measurement
Packing Weight 5g - 5 kg 5g - 5 kg
Measurement Volume Weighing
Speed 1200 – 3500 bags/h 1200 – 3500 bags/h
Accuracy ≤ 1% ≤ 0.3%
Voltage AC380V / 220V / 110V AC380V / 220V / 110V
Power 1.5 Kw 1.5 Kw
Machine Weight 180 kg 180 kg
Dimensions (L×W×H) 740 × 810 × 1900 mm 740 × 810 × 1900 mm
Packing Weight 10g - 10 kg
Measurement Weighing
Speed 300 - 800 bags/h
Accuracy ≤ 0.3%
Voltage AC380V / 220V / 110V
Power 1.5 Kw
Machine Weight 180 kg
Dimensions (L×W×H) 740 × 810 × 1900 mm

GMB-02D Quantitative Powder Packing Machine

GMB-15kg & GMB-01A Quantitative Powder Packing Machine

Specification Heavy-Duty Weighing High-Speed Volume
Packing Weight 100g - 15 kg 5g - 5 kg
Measurement Weighing Volume
Speed 240 - 600 bags/h 1200 - 3500 bags/h
Accuracy ≤ 0.2% ≤ 1%
Voltage AC380V / 220V / 110V AC380V / 220V / 110V
Power 1.5 Kw 1.5 Kw
Machine Weight 220 kg 180 kg
Dimensions (L×W×H) 740 × 810 × 1900 mm 740 × 810 × 1900 mm
Packing Weight 500g - 50 kg
Measurement Weighing
Speed 120 - 300 bags/h
Accuracy ≤ 0.2%
Voltage AC380V / 220V / 110V
Power 2.7 Kw
Hopper Volume 70 L
Machine Weight 280 kg
Dimensions (L×W×H) 1000 × 600 × 2400 mm

GMB-50R Weighing Powder Packing Machine

GMB-03 C Dust-proof Weighing Powder Packing Machine

Packing Weight 5 kg - 50 kg
Measurement Weighing
Speed 50 - 300 bags/h
Accuracy ≤ 0.3%
Voltage AC380V / 220V / 110V
Power 3 Kw
Hopper Volume 70 L
Machine Weight 350 kg
Dimensions (L×W×H) 1200 × 930 × 2900 mm

GM & FK Single Head Valve Bag Powder Packing Machine

Packing Weight 5 kg - 50 kg
Speed 50 - 180 bags/h
Accuracy ≤ 0.3%
Voltage AC380V / 220V / 110V
Power 2.7 Kw
Machine Weight 240 kg
Dimensions (L×W×H) 740 × 1370 × 1820 mm

GMB-03A Conjoined Hopper Powder Packing Machine

Center Distance 180mm / 320mm / 400mm
Voltage AC380V / 220V / 110V
Power 3 Kw
Machine Weight 350 kg
Dimensions (L×W×H) 1200 × 850 × 1900 mm

GMB-50Kg Powder Weighing and Measuring Machine

Packing Weight 50g - 50 kg
Speed 150 - 350 bags/h
Accuracy ≤ 0.2%
Voltage AC380V / 220V / 110V
Power 0.5 Kw
Machine Weight 60 kg
Dimensions (L×W×H) 850 × 745 × 1460 mm

Semi-automatic packing (Granule)

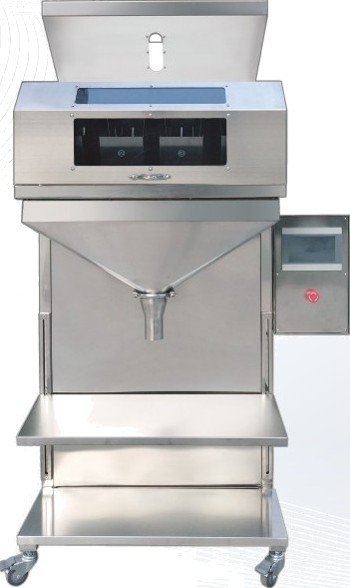

GM & 02B Double Scale Granule Weighing Filling klachine

Scale Volume 5L / 10L / 15L
Packing Weight 5g - 6kg
Scale Amount 2
Head Diameter 22mm / 32mm / 45mm / 60mm / 76mm / 89mm
Packing Speed 1200 - 1500 bags/h
Accuracy ≤ 0.3%
Voltage AC220V / 110V
Power 0.5 Kw
Machine Weight 120 kg
Dimensions (L×W×H) 800 × 800 × 1800 mm

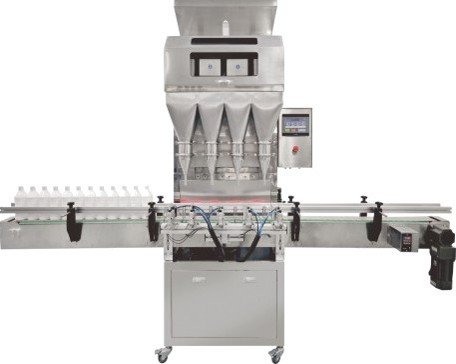

GM & 02C Four Scales Granule Weighing Filing Machine

Scale Volume 3.5L / 5L
Packing Weight 5g - 6kg
Scale Amount 2
Head Diameter 22mm / 32mm / 45mm / 60mm / 76mm / 89mm
Packing Speed 1500 - 3600 bags/h
Accuracy ≤ 0.3%
Voltage AC220V / 110V
Power 0.8 Kw
Machine Weight 120 kg
Dimensions (L×W×H) 1050 × 800 × 1880 mm

Semi -Automatic Packing line (Granule)

GMB-25Kg Dou ble Scale Granule Weighing Filling Machine

Scale Volume 29L / 38L / 42L
Packing Weight 500g - 25kg
Scale Amount 2
Head Diameter 76mm / 108mm / 159mm
Packing Speed 600 - 1500 bags/h
Accuracy ≤ 0.2%
Voltage AC220V / 110V
Power 0.5 Kw
Machine Weight 350 kg
Dimensions (L×W×H) 1000 × 750 × 2330 mm

GMB-50kg Bag Clam ping Granule Weighing Filing Machine

Packing Weight 1 kg - 50 kg
Speed 150 – 400 bags/h
Accuracy ≤ 0.3%
Voltage AC220V / 110V
Air Intake 0.11 – 0.22 m³/min
Power 0.5 Kw
Machine Weight 280 kg
Dimensions (L×W×H) 1000 × 750 × 2370 mm

Semi-Automatic Packing line (Liquid)

APG-03 Double Nozzle Liquid Weighin g Fillin g Machine (3/4 nozzles)

Packing Weight 100g - 25 kg
Speed 240 – 1200 bottles/h
Accuracy ≤ 0.2%
Voltage AC220V / 110V
Air Pressure 0.4 – 0.6 MPa
Power 3 Kw
Machine Weight 120 kg
Dimensions (L×W×H) 790 × 730 × 1700 mm

APG-d2 Liquid Weighing Filling Machine (2/3/4 nozzles)

Filling Weight 500g - 25 kg
Speed 240 – 1200 bottles/h
Accuracy ≤ 0.2%
Voltage AC220V / 110V
Air Pressure 0.4 – 0.6 MPa
Power 1 Kw
Dimensions (L×W×H) 1000 × 750 × 2370 mm

APG-01 Quantitative Liquid Filling Machine

Filling Volume 10 – 100 ml
Speed 800 – 3500 bottles/h
Accuracy ≤ 1%
Voltage AC220V / 110V
Machine Weight 70 Kg
Power 0.5 Kw
Dimensions (L×W×H) 1000 × 750 × 2370 mm

Semi-Automatic Packing line (Sauce Paste)

APG-05 Stirring Sause Weighing Filling Machine

Filling Weight 5g - 50kg
Speed 100 – 500 g/s
Accuracy ≤ 1g
Voltage AC220V / 110V
Power 1.75 Kw / 2.25 Kw
Outlet Diameter 38mm / 51mm
Air Intake ≤ 0.1 m³/min
Machine Weight 50 kg
Dimensions (L×W×H) 1100 × 410 × 1400 mm

APG-06 Paste

Filling Weight 5g – 10kg
Speed 100 – 500 g/s
Accuracy ≤ 2g
Voltage AC220V / 110V
Air Pressure 0.6 MPa
Power 1 Kw

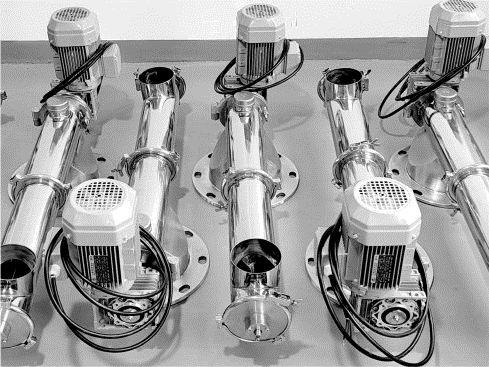

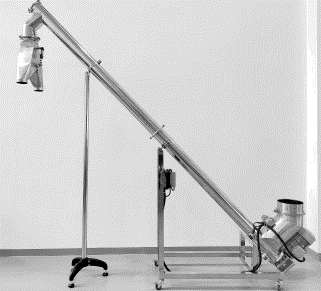

Screw Feeding Machine Series

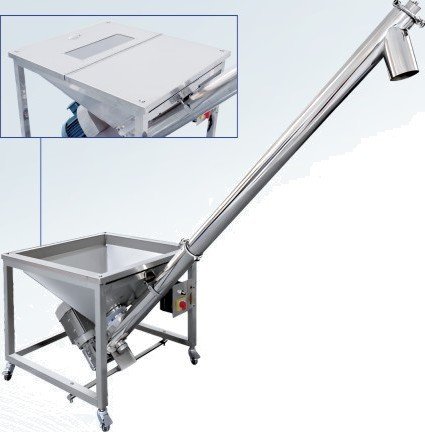

APT-T2. Screw Conveyer (Square Hopper)

Transport Power Belt Geared Motor
Speed 1000 – 5000 kg/h
Silo Volume 120 L
Voltage AC380V / 220V / 110V
Power 1.5 Kw
Pipe Diameter 89mm / 108mm / 114mm / 133mm / 159mm
Silo Height 840mm / 750mm
Machine Weight 150 Kg
Dimensions (L×W×H) 2200 × 800 × 1900 mm
Transport Power Geared Motor
Speed 1000 – 5000 kg/h
Silo Volume 120 L
Voltage AC380V / 220V / 110V
Power 1.8 Kw
Pipe Diameter 89mm / 108mm / 114mm / 133mm / 159mm
Silo Height 855 mm
Machine Weight 150 Kg
Dimensions (L×W×H) 2120 × 700 × 1900 mm

APT-T3 Screw Conveyor (Rouüd Hopper)

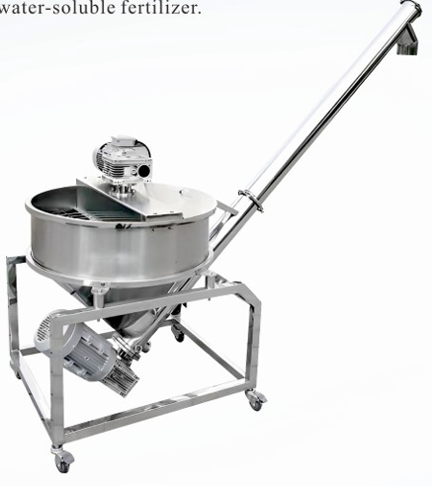

APT-T4 Stirring Screw Conveyor

Transport Power Geared Motor
Speed 1000 – 5000 kg/h
Silo Volume 120 L
Voltage AC380V / 220V / 110V
Power 3 Kw
Pipe Diameter 89mm / 108mm / 114mm / 133mm / 159mm
Silo Height 910 mm
Machine Weight 220 Kg
Dimensions (L×W×H) 2140 × 850 × 1900 mm

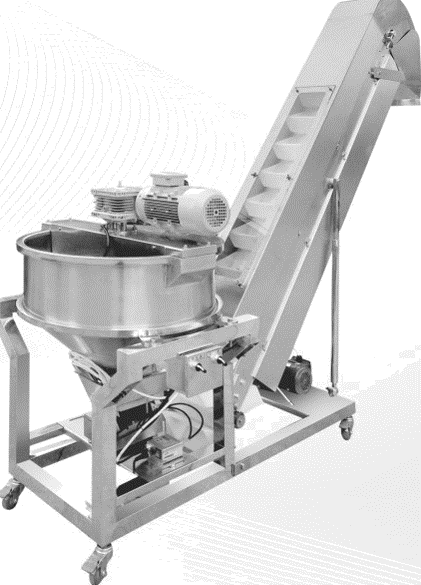

APT-T5 Stirring Bucket Conveyor

Transport Power Belt
Speed 1000 – 9000 kg/h
Silo Volume 120 L
Voltage AC220V / 110V
Power 2 Kw
Pipe Diameter 89mm / 108mm / 114mm / 133mm / 159mm
Silo Height 985 mm
Machine Weight 300 Kg
Dimensions (L×W×H) 2320 × 850 × 2200 mm

APT-T6 Dust-proof Screw Conveyor

Transport Power Geared Motor
Speed 1000 – 5000 kg/h
Silo Volume 120 L
Voltage AC380V / 220V / 110V
Power 3 Kw
Pipe Diameter 89mm / 108mm / 114mm / 133mm / 159mm
Silo Height 900 mm
Machine Weight 150 Kg
Dimensions (L×W×H) 2560 × 920 × 1900 mm

Vacuum Feeding Machines

Specification ZKL-3 ZKL-6 ZKL-10
Motor Vortex fan Vortex fan
Roots blower		 Two – Vortex fan
Roots blower
Power 3 Kw 7.5 Kw
4 Kw		 11 Kw
7.5 Kw
Speed 1200 kg/h 3500 kg/h 6000 kg/h
Dimension Φ290 × 950mm Φ420 × 1450mm Φ600 × 1650mm
Diameter Φ51mm Φ63mm Φ76mm
Air Pressure 0.6 MPa

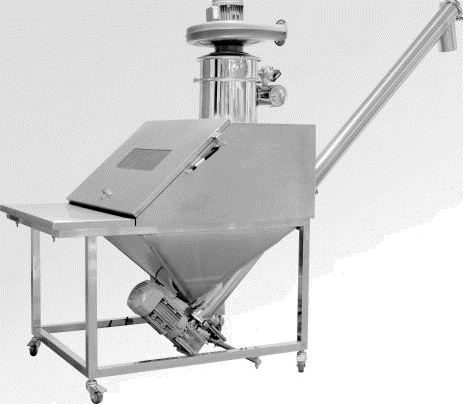

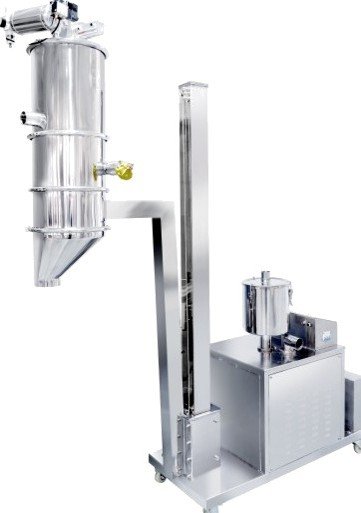

Vacuum Feeding Machine(with Silo)

Transport Power Geared Motor
Speed 1500 - 2000 kg/h
Silo Volume 120L - 200L
Voltage AC380V / 220V / 110V
Power 1.5 Kw
Machine Weight 150 kg
Screw Length 2310 mm
Pipe Diameter 108 mm
Screw Height 1600 mm
Silo Height 900 mm
Dimensions (L×W×H) 2560 × 920 × 1900 mm

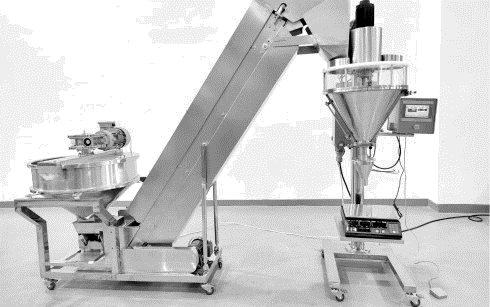

Bucket Feeding Machine Series

APT-T1 Bucket Feeding Machine

Transport Power Belt
Speed 1000 – 3000 kg/h
Silo Volume 120 L
Voltage AC 220V / 110V
Power 1 Kw
Silo Height 840 mm
Machine Weight 180 Kg
Transport Length 1860 mm
Dimensions (L×W×H) 2380 × 1000 × 2350 mm

APT-Z Bucket Feeding Machine

Transport Power Belt
Speed 1000 – 3000 kg/h
Silo Volume 80 L
Voltage AC 220V / 110V
Power 0.75 Kw
Silo Height 920 mm
Machine Weight 300 Kg
Transport Length 3250 mm
Dimensions (L×W×H) 3100 × 650 × 3550 mm

Supporting Machine

Air Flow 280 m³/h
Main Filter Area 15000 cm³
Power 1.75 Kw
Vacuum 21 kPa
Silo Volume 30 L
Voltage AC380V / AC220V
Inner Diameter 40 mm
Noise 64 dB/A
Weight 75 kg

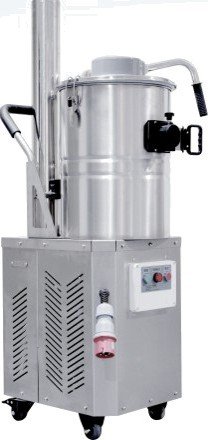

NT301 Industrial Vacuum Dust Collection Machine

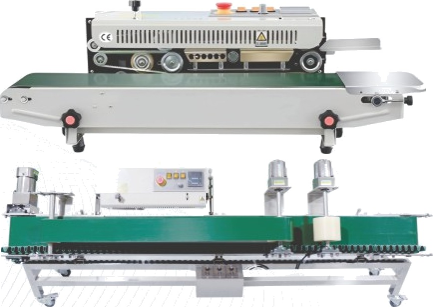

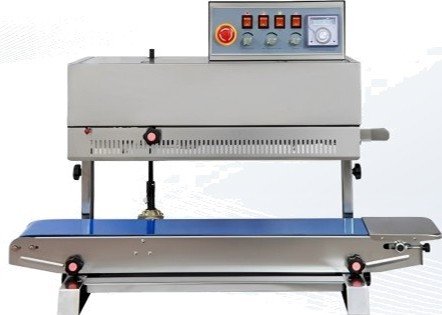

(770 \810 \980) Continuous Sealing Machine

Sealing Type Steel wheel / Ink wheel
Speed 0 - 24 m/min
Max Weight ≤ 10 kg
Sealing Width 10 mm
Temperature 0 – 300 °C
Voltage AC220V / 110V
Center to Bag 21 mm
Center to Belt 15 – 40 mm / 10 – 40 mm
Belt Width 60 – 120 mm / 65 – 85 mm
Sealing Type Steel wheel / Ink wheel
Speed 0 - 24 m/min
Max Weight ≤ 10 kg
Sealing Width 10 mm
Temperature 0 – 300 °C
Voltage AC220V / 110V
Center to Bag 21 mm
Center to Belt 200 – 320 mm

(770\810\980) Continuous Sealing Machine

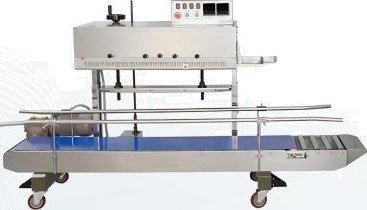

1120 Series Continuous Sealing Machine

Sealing Type Ink wheel
Speed 0 - 10 m/min
Max Weight ≤ 15 kg
Sealing Width 10 mm
Temperature 0 – 300 °C
Voltage AC220V
Center to Bag ≤ 43 mm
Center to Belt 100 – 700 mm
Machine Weight 150 Kg
Conveyor Dimension 1600 × 250 mm
Sealing Type Ink wheel
Speed 0 - 8 m/min
Max Weight ≤ 60 kg
Sealing Width 10 mm
Temperature 0 – 300 °C
Voltage AC220V
Center to Bag ≤ 109 mm
Center to Belt 300 – 900 mm
Machine Weight 250 Kg
Conveyor Dimension 2400 × 350 mm

1370 Series Continuous Sealing Machine

DFS Series Sealing Machine

Specification Model 1 Model 2 Model 3 Model 4
Bag Width ≤ 350mm ≤ 450mm ≤ 650mm ≤ 800mm
Sealing Width 2 – 10mm
Heating Time 0 – 2.5 s
Voltage AC220V
Power 1.2 Kw 1.25 Kw 1.5 Kw 1.8 Kw
Machine Weight 19 Kg 21 Kg 24 Kg 29 Kg
Bag Width 600mm / 800mm / 1000mm
Capacity ≤ 50 Kg
Film Width ≤ 0.18 mm
Sealing Width 10 mm
Air Pressure 0.5 MPa
Voltage AC220V
Bag Length 200 - 750 mm
Center to Ground 900 - 1400 mm
Machine Weight 84 Kg
Dimensions (L×W×H) 910 × 780 × 1780 mm

OF -600LD/S Big Bag Pneumatic Sealin g Machine

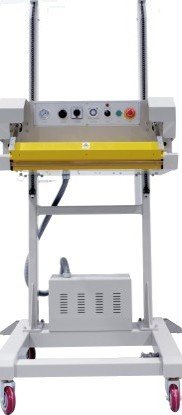

QF-600L/S Big Bag Pneumatic Sealing Machine

Bag Width 600mm | 800mm | 1000mm
Capacity ≤ 50 Kg
Film Width ≤ 0.18 mm
Sealing Width 10 mm
Air Pressure 0.5 MPa
Voltage AC220V
Bag Length 200 - 750 mm
Center to Ground 1146 mm
Machine Weight 80 Kg
Dimensions (L×W×H) 945 × 725 × 1420 mm
Model Folding | Straight
Speed 0 - 9 m/min
Capacity ≤ 50 kg
Air Pressure 0.8 MPa
Voltage AC380V
Bag Length 400 - 900 mm
Conveyor Dimension 2000 × 450 mm
Machine Weight 160 kg
Dimensions (L×W×H) 2000 × 1500 × 650 mm

LFS Sewing Machine

Other Machines

Semi-Auto Capping Machine (Bucket)

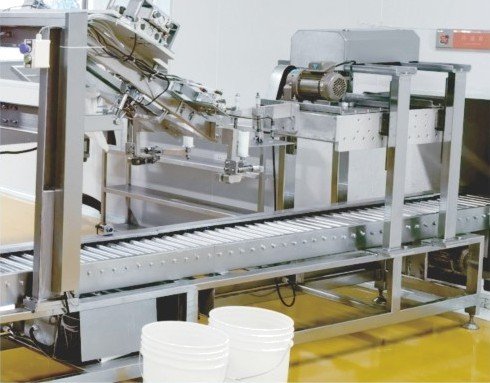

Fully Auto Capping Machine (Bucket)

Single Head and Double Scale Granule Filling Machine

Transparent Cover Powder Filling Machine

Softened Sugar Packing Machines

Mixed Packing Machines

Horizontal Screw Conveyor

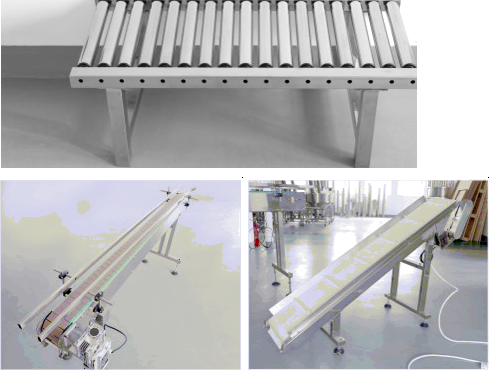

Conveyor

Fork Feeder (Screw Conveyor)

Fork Feeder Device

Explosion-proof Electric Control Box

With Mixer

Transfer Silo

Air Lock

Get To Know More!

You have been successfully Subscribed! Ops! Something went wrong, please try again.
Delivering solutions that drive Growth in Agriculture and Allied industries worldwide.

Contact Details

Pages

Home

About

Products

Careers

Contact

Follow Us

Facebook-f Instagram Whatsapp Twitter

© 2025 | All Rights are Reserved.

Powered by: Topsun Technologies
